Telescopic rod guide SIC ENF
Quality guides for telescopic rods with a total range from 3.0 mm to 26 mm diameter tube. Guide is made of metal, ring is made of SiC and is seated directly in a metal frame. To illustrate - the largest guide of tube 26 mm weighs 13 g. The dimensions of... Full description Full description
Manufacturer: Energofish® Need help? +420604994440
Choose variant:
Original price: 1,800 $
Specifications
| Frame material | metal |
| Ring Material | SiC |
Product description

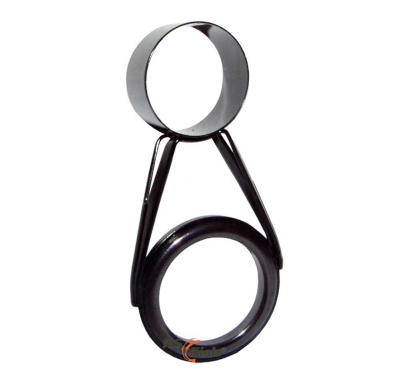

Quality guides for telescopic rods with a total range from 3.0 mm to 26 mm diameter tube. Guide is made of metal, ring is made of SiC and is seated directly in a metal frame. To illustrate - the largest guide of tube 26 mm weighs 13 g.
The dimensions of guides as shown :
|
Tube diameter |
Dimension A |
Dimension B |
Dimension C |
|
3,0 mm |
5,1 mm |
16,9 mm |
3,0 mm |
|
3,5 mm |
5,1 mm |
18,5 mm |
3,5 mm |
|
4,0 mm |
6,9 mm |
20,6 mm |
4,0 mm |
|
4,5 mm |
6,9 mm |
21,5 mm |
4,5 mm |
|
5,0 mm |
8,2 mm |
25,5 mm |
5,0 mm |
|
5,5 mm |
8,2 mm |
26,5 mm |
5,5 mm |
|
6,0 mm |
8,2 mm |
27,1 mm |
6,0 mm |
|
6,5 mm |
8,2 mm |
27,5 mm |
6,5 mm |
|
7,0 mm |
8,2 mm |
27,5 mm |
7,0 mm |
|
7,5 mm |
8,2 mm |
28,5 mm |
7,5 mm |
|
8,0 mm |
10,8 mm |
36,1 mm |
8,0 mm |
|
8,5 mm |
10,8 mm |
36,1 mm |
8,5 mm |
|
9,0 mm |
10,8 mm |
37,5 mm |
9,0 mm |
|
9,5 mm |
10,8 mm |
38,0 mm |
9,5 mm |
|
10,0 mm |
10,8 mm |
38,0 mm |
10,0 mm |
|
10,5 mm |
10,8 mm |
38,0 mm |
10,5 mm |
|
11,0 mm |
10,8 mm |
38,0 mm |
11,0 mm |
|
11,5 mm |
10,8 mm |
38,0 mm |
11,5 mm |
|
12,0 mm |
13,9 mm |
44,5 mm |
12,0 mm |
|
12,5 mm |
13,9 mm |
44,5 mm |
12,5 mm |
|
13,0 mm |
13,9 mm |
45,1 mm |
13,0 mm |
|
13,5 mm |
13,9 mm |
46,0 mm |
13,5 mm |
|
14,0 mm |
13,9 mm |
47,0 mm |
14,0 mm |
|
14,5 mm |
13,9 mm |
47,0 mm |
14,5 mm |
|
15,0 mm |
18,1 mm |
55,5 mm |
15,0 mm |
|
15,5 mm |
18,1 mm |
55,5 mm |
15,5 mm |
|
16,0 mm |
18,1 mm |
56,5 mm |
16,0 mm |
|
16,5 mm |
18,1 mm |
56,5 mm |
16,5 mm |
|
17,0 mm |
18,1 mm |
57,0 mm |
17,0 mm |
|
17,5 mm |
18,1 mm |
57,0 mm |
17,5 mm |
|
18,0 mm |
23,2 mm |
61,2 mm |
18,0 mm |
|
18,5 mm |
23,2 mm |
62,5 mm |
18,5 mm |
|
19,0 mm |
23,2 mm |
67,5 mm |
19,0 mm |
|
19,5 mm |
23,2 mm |
69,2 mm |
19,5 mm |
|
20,0 mm |
23,2 mm |
69,2 mm |
20,0 mm |
|
21,0 mm |
23,2 mm |
69,2 mm |
21,0 mm |
|
22,0 mm |
23,2 mm |
72,2 mm |
22,0 mm |
|
23,0 mm |
23,2 mm |
72,2 mm |
23,0 mm |
|
24,0 mm |
23,2 mm |
73,8 mm |
24,0 mm |
|
25,0 mm |
23,2 mm |
74,1 mm |
25,0 mm |
|
26,0 mm |
23,2 mm |
75,2 mm |
26,0 mm |
