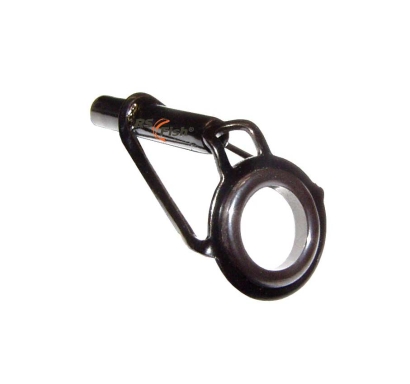

Top guide Aluminium Oxide

Quality top guides for rods with a total range from 1,4 mm to 4,5 mm diameter of tube. Guide is made of metal, ring is made of aluminumoxide and is seated directly in a metal frame. The diameter of the tube is given as inner.

The dimensions of individual sizes as shown on picture :

- tube diameter 1,4 mm - dimension A = 3,8 mm, dimension B = 13,0 mm

- tube diameter 1,6 mm - dimension A = 3,8 mm, dimension B = 13,0 mm

- tube diameter 1,8 mm - dimension A = 3,8 mm, dimension B = 13,0 mm

- tube diameter 2,0 mm - dimension A = 5,1 mm, dimension B = 15,0 mm

- tube diameter 2,2 mm - dimension A = 5,1 mm, dimension B = 15,0 mm

- tube diameter 2,4 mm - dimension A = 5,1 mm, dimension B = 15,0 mm

- tube diameter 2,6 mm - dimension A = 5,1 mm, dimension B = 15,0 mm

- tube diameter 2,8 mm - dimension A = 6,8 mm, dimension B = 16,2 mm

- tube diameter 3,0 mm - dimension A = 6,8 mm, dimension B = 16,2 mm

- tube diameter 3,6 mm - dimension A = 10,5 mm, dimension B = 21,0 mm

- tube diameter 4,0 mm - dimension A = 10,5 mm, dimension B = 21,0 mm

- tube diameter 4,5 mm - dimension A = 10,5 mm, dimension B = 21,0 mm
