Top guide SiC C.S.

JSA
Top guide SiC C.S.
  • main_11058
  • gallery_5301_10367

Code: VAA0008

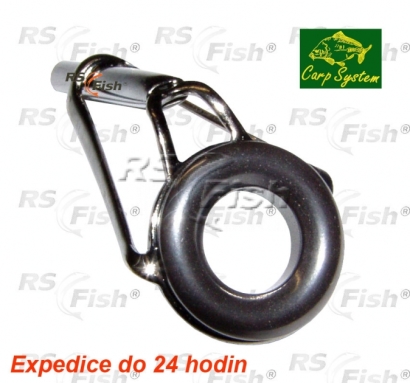

Quality top guides for rods with a total range from 2,4 mm to 4,0 mm diameter of tube. Guide is made of metal, ring is made of silicon carbide and is seated directly in a metal frame.   The dimensions of individual sizes as shown on picture : - tube diam... Full description

Manufacturer: JSA Need help? +420604994440

Price: 2,300 $

Original price: 2,800 $

You will save: 0,500 $ (-18%)

+
Add to cart

Similar products

Top guide Aluminium Oxide - Feeder
In stock
Top guide Aluminium Oxide - Feeder

1,600 $

1,300 $

More variants

Quality top guides for feeder rods with diameter of tube 1,0...

Top guide SiC C.S. - SS Carp
In stock
Top guide SiC C.S. - SS Carp

5,500 $

4,500 $

Quality top guides for rods with a total range from 2,4 mm t...

Top guide SiC C.S. - SS Sea
In stock
Top guide SiC C.S. - SS Sea

7,700 $

6,800 $

More variants

Quality top guides for rods with a total range from 2,4 mm t...

Specifications

Frame material metal
Ring Material silicon carbid

Product description

Quality top guides for rods with a total range from 2,4 mm to 4,0 mm diameter of tube. Guide is made of metal, ring is made of silicon carbide and is seated directly in a metal frame.



The dimensions of individual sizes as shown on picture :

tube diameter / size - 2,5 mm / 10 - dimension A = 5,8 mm, dimension B = 18,0 mm

tube diameter / size - 3,0 mm / 10 - dimension A = 5,8 mm, dimension B = 18,0 mm

tube diameter / size - 3,5 mm / 10 - dimension A = 5,8 mm, dimension B = 18,0 mm

tube diameter / size - 4,0 mm / 10 - dimension A = 5,8 mm, dimension B = 18,0 mm

tube diameter / size - 3,0 mm / 12 - dimension A = 6,5 mm, dimension B = 20,0 mm

tube diameter / size - 3,5 mm / 12 - dimension A = 6,5 mm, dimension B = 20,0 mm

tube diameter / size - 3,0 mm / 16 - dimension A = 8,6 mm, dimension B = 24,0 mm

tube diameter / size - 3,5 mm / 16 - dimension A = 8,6 mm, dimension B = 24,0 mm
